Next Level Neo's SK6812 Addressable RGBW LEDs
Pack of 100 LEDs | GRBW Color Order | 5V Operation
Designed for 5mm panel Projects and Custom Builds
Take your 5mm panel and custom lighting projects to the next level with Next Level Neo’s SK6812 Addressable RGBW LEDs. Designed for builders seeking vibrant color control and enhanced versatility, these LEDs offer full RGB color plus a dedicated Cool White (~6000K) channel for clean white DRL.
Perfect for replacing single-color setups or building fully addressable lighting plates, these LEDs are a must-have for serious DIY enthusiasts.
Key Features:
-
SK6812 GRBW LEDs:
-
Full RGB color spectrum plus an independent white channel for crisp highlights and smooth blends.
-
-
Built-In Capacitors:
-
Helps stabilize voltage, reducing flickering and power fluctuation issues.
-
-
Customizable Integration:
-
Ideal for DIY projects and compatible with popular controllers like BlueGhozt for maximum effect control.
-
Product Details:
-

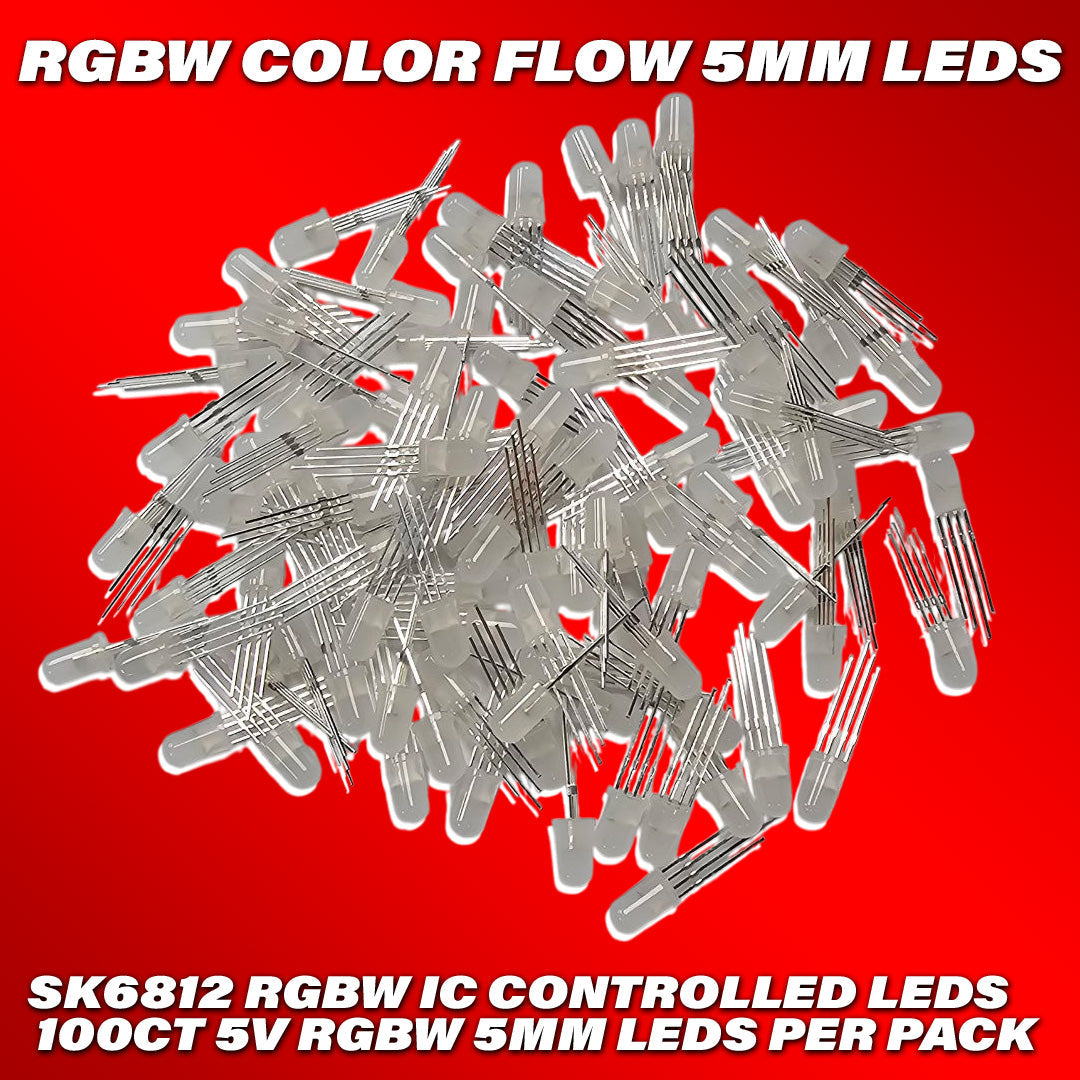

LED Count: 100 LEDs per pack
-
Voltage: 5V (Inverters recommended for automotive applications)
-
Color Order: GRBW (Green-Red-Blue-White)
-
Controller Compatibility: Works with GRBW-capable addressable controllers such as BlueGhozt and Pro Flow.
Installation Notes:
-
Technical Skills Required:
-
Not plug-and-play—requires soldering and a basic understanding of addressable LED wiring.
-
-

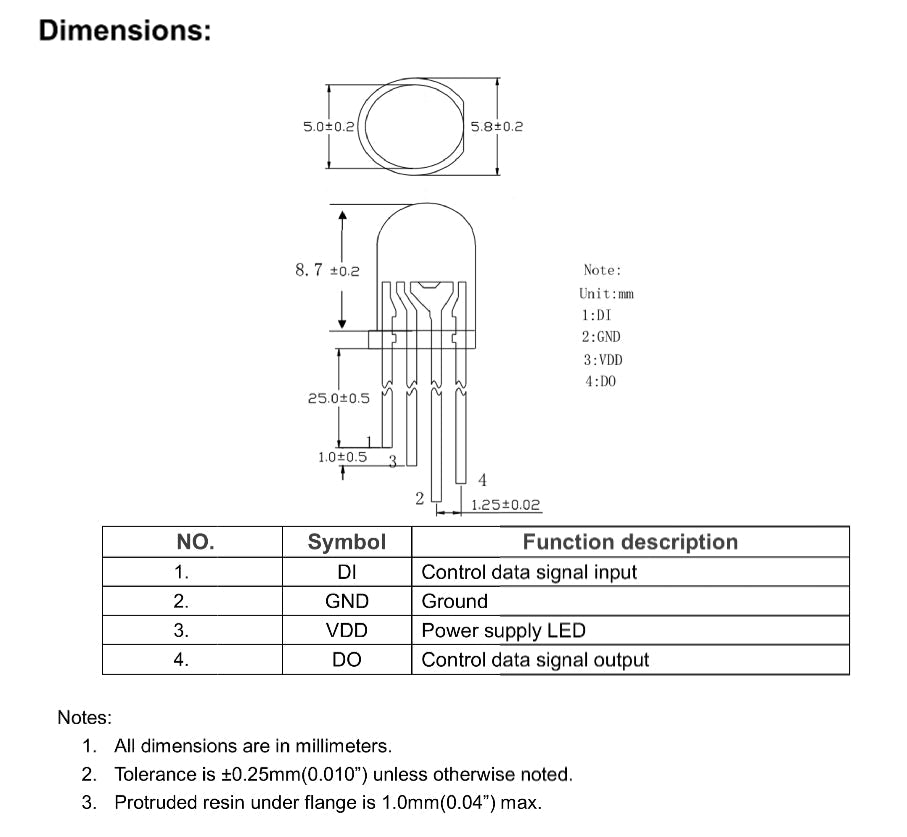

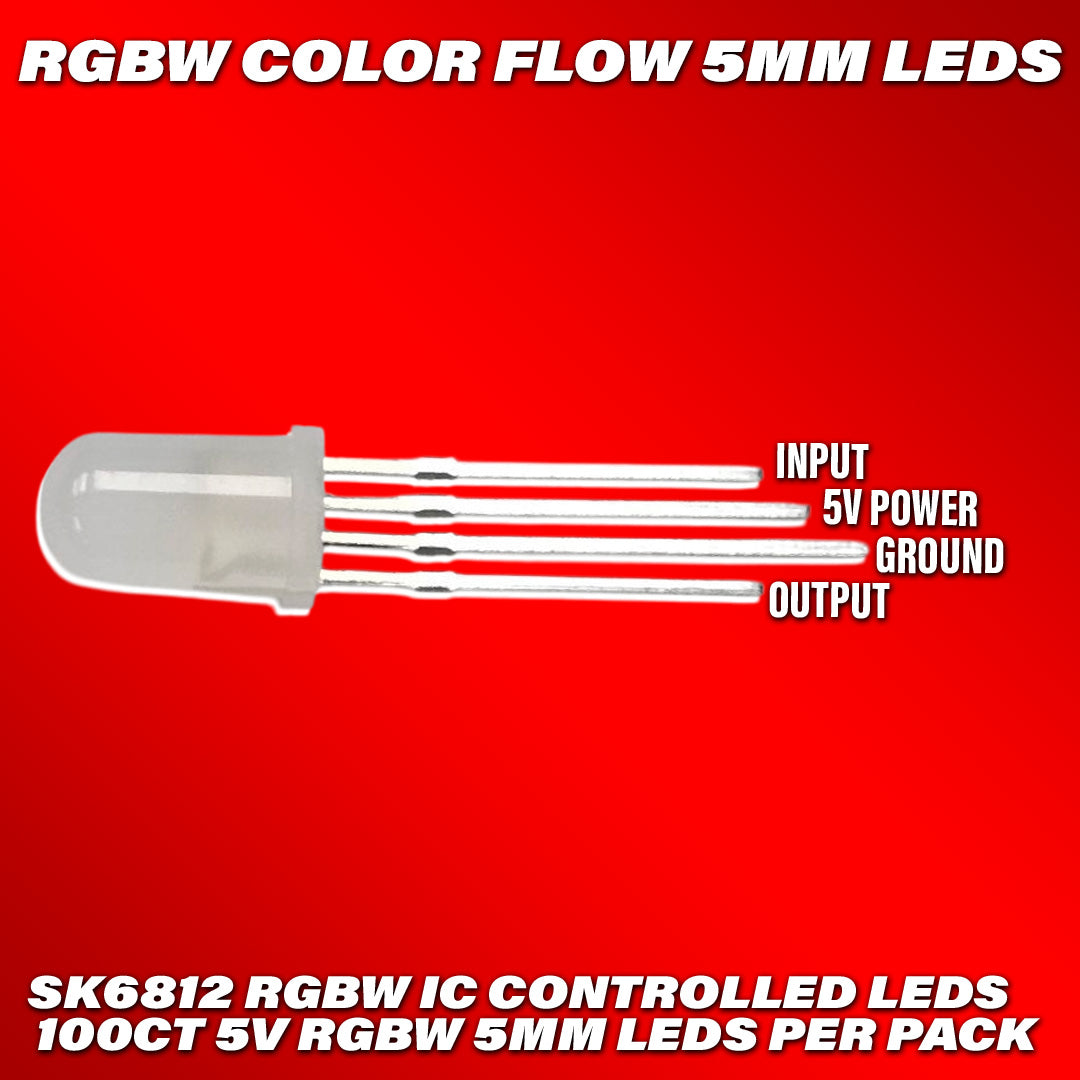

Pin Order Notice:
-
Different than standard RGB 5mm LEDs—please refer to wiring diagrams and images before connecting.
-
-
Tutorial Support:
-
Installation video available on the product page—highly recommended viewing before purchase. Installation video
-
-
Best Practices:
-
Solder with an iron set to approximately 350°C, keeping contact with pins under 2 seconds. These leds are a bit more sensitive than the RGB 5mm to prolonged heat from the iron.
-
Important Information:
-
Plates Not Included:
-
LEDs only—designed for integration into DIY plates or aftermarket 5mm panels.
-
-
Warranty:
-
Due to the delicate nature of the LEDs, no warranty is provided.
-
Every LED is rigorously tested before shipping to ensure functionality.
-
Light Your Imagination
Add vibrant, customizable lighting to your build with Next Level Neo’s SK6812 Addressable RGBW LEDs—built for creators who demand control, reliability, and flawless results.
